GIGABYTE X870 AORUS ELITE WIFI7 AM5 LGA 1718, ATX, DDR5, 4x M.2, PCIe 5.0, USB4, Wi-Fi 7, 2.5GbE LAN, EZ-Latch, 5-Year Warranty
GIGABYTE X870 AORUS ELITE WIFI7 AM5 LGA 1718, ATX, DDR5, 4x M.2, PCIe 5.0, USB4, Wi-Fi 7, 2.5GbE LAN, EZ-Latch, 5-Year Warranty
GIGABYTE X870 AORUS ELITE WIFI7 AM5 LGA 1718, ATX, DDR5, 4x M.2, PCIe 5.0, USB4, Wi-Fi 7, 2.5GbE LAN, EZ-Latch, 5-Year Warranty
GIGABYTE X870 AORUS ELITE WIFI7 AM5 LGA 1718, ATX, DDR5, 4x M.2, PCIe 5.0, USB4, Wi-Fi 7, 2.5GbE LAN, EZ-Latch, 5-Year Warranty

GIGABYTE X870 AORUS ELITE WIFI7 AM5 LGA 1718, ATX, DDR5, 4x M.2, PCIe 5.0, USB4, Wi-Fi 7, 2.5GbE LAN, EZ-Latch, 5-Year Warranty

0 reviews 0 sold. Only 999 remain
RM 300.00 RM 389.00
Tax RM 300.00
Product Code: N82E16813145519
Stock In Stock
Viewed 207 times

Product Description

  • "AMD Socket AM5: Supports AMD Ryzen 9000 / Ryzen 8000 / Ryzen 7000 Series Processors
  • DDR5 Compatible: 4*DIMMs with AMD EXPO Support
  • Power Design: 16+2+2
  • Thermals: VRM and M.2 Thermal Guard
  • Connectivity: PCIe 5.0, 4x M.2 Slots, Dual USB4, Front and Rear USB-C, Sensor Panel Link
  • DIY Friendly: M.2 EZ-Latch, PCIe EZ-Latch, Wi-Fi EZ-Plug, EZ-Debug Zone
  • Networking: Wi-Fi 7, 2.5GbE LAN
  • 5-Year Warranty


Specifications

Model
BrandGIGABYTE
ModelX870 AORUS ELITE WIFI7
Supported CPU
CPU Socket Type AM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
Chipsets
Chipset AMD X870
Memory
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 5200
Maximum Memory Supported256GB
Channel Supported Dual Channel
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
Memory FeatureSupport for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
Expansion Slots
PCI Express 5.0 x161 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
* The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.

When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)
PCI Express x4Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector.

- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
Storage Devices
Serial ATA (SATA) 4 x SATA 6Gb/s
M.21 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
* The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 processor is used.

1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
SATA RAID0/1/10
Onboard Audio
Audio Chipset Realtek ALC1220
Audio Channels 7.1 Channels
Onboard LAN
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBLUETOOTH 5.4

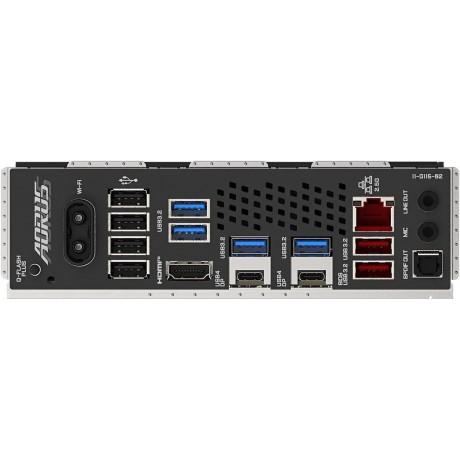

Rear Panel Ports
Back I/O Ports1 x Q-Flash Plus button
1 x HDMI port
2 x antenna connectors (2T2R)
2 x USB4 USB Type-C ports (DisplayPort)
2 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
Internal I/O Connectors
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x noise detection header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port
1 x power button
1 x reset button
2 x temperature sensor headers
1 x reset jumper
1 x Clear CMOS jumper
Physical Spec
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
Software Feature
BIOS Feature
